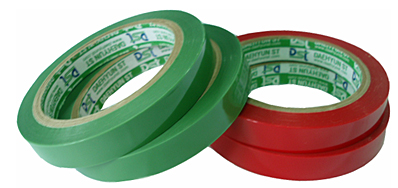

Part No. NT-852G
                    NT-850G
                    NT-850R



      Description

      Polyester masking tape is used to close connection of the core¡¯s entire surface, protects products from foreign Substances during SMT process.



      Features

      * Provides excellent chemical and heat resistant, and wide selection of adhesion intensity
      * No residue leaves after peel off.
      * Highly recommended in detecting inferior products and as an inspection tool with its variety of color.
      * For use in JIG, (F)PCB fixation, E/T process, leading.
      * Heat Resistance : 180 ¡É



      Technical data

      * R : Red , G: Green
      ITEM UNIT VALUE TEST METHOD
      ST-852G ST-850G ST-850R
      Base Film Thickness §­ 25 ¡¾ 2 25 ¡¾ 2 25 ¡¾ 2 Digimetic Micrometer (Mitutoyo)
      Total Thickness
      		 §­ 85 ¡¾ 3 65 ¡¾ 3 65 ¡¾ 3
      Peel Adhesion gf/in 900 ¡¾ 50 750 ¡¾ 50 700 ¡¾ 100 HOUNS FIELD -H5KS
      Elongation
      		 % Above 70 Above 70 Above 70
      Tensile Strength
      		 kg/in Above 7 Above 7 Above 7
      Heat Resistance
      		 - Good Good Good 180¡É Heating Oven
      Chemical Resistance - Good Good Good 20 % HCI, NaOH /5hrs
      Appearance - Green Green Red Visual Test
