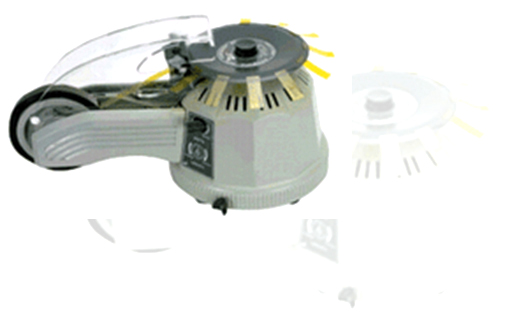

Part No. NCT-5001 TAPE Cutter
* Accepts tape widths from .125¡± to .98¡± (3 to 25 mm)
* Cuts lengths from .51¡± to 2.36¡±(13 to 60 mm)
* Allows up to 20 pieces of tape to be cut at the touch of a button
* Unique feed system places tape on carousel for easy removal
* Ideal for multiple operators and high volume requirements
* Accept 1¡±, 1.25¡± and 3¡± core diameter tapes (25.4, 32 and 76.2 mm)
* Safety switch on cover
| Model |
NCT5001 |
| Tape width Inch Metric |
.12 to .98"(3 to 25mm) |
| Cut length Inch Metric |
.51 to 2.36"(12 o 60mm) |
| Max. uotside dia. of roll |
5.1"(130mm) |
| Core diameter |
1", 1.25", 3"(25,32,76.2mm) |
| Accuracy of cut* |
0.4"(1mm) |
| Tape cutter |
automatic |
| Feed type |
carousel type |
| Adjustable tape spacing |
yes |
| Length setting |
mechanical (lead screw) |
| Weight |
6.2 lbs. (2.75kg.) |
| Dimensions |
11.8"(L)x6.3"(W)x6.3"(L) (30cm(L)x16cm(W)x16cm(H)) |
| Electrical requirements |
117V 50/60z, < 1amp (220V 50/60Hz available) |
¡Ø dependent on material
|
