 Part
No. NS-0910

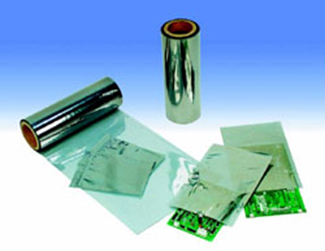

This shielding bag prevents static electricity completely and still
allows to view the contents.
It is a four-ply structure, that prevents friction static lectricity
caused by internal friction and is suitable for carrying and storing
electronic components.
The interior has an anti-static coating to prevent friction static
lectricity, the middle is made of an aluminum layer to protect from
externally enerated static electricity, and the exterior is composed
of polyester layers to increase the durability of the bag.
| TEST ITEM |
UNIT |
RESULT |
TEST METHOD |
| TICKNESS |
mil |
3 |
ASTM D 374 |
| STRENGTH TENSILE STRENGTH |
MD |
kg/sqmm |
4.95 |
ASTM D-882 |
| TD |
kg/sqmm |
4.18 |
| ELONGATION |
MD |
% |
112 |
ASTM D-882 |
| TD |
118 |
| SEALING STRENGTH |
kgf/15 mm |
4.26 |
ASTM F88-85 |
| LIGHT TRANSMISSION |
% |
51.80% |
ASTM D 1003 |
| SURFACE RESISTIVITY |
OUTER |
Oms/sq |
< 10E12 |
ASTM D 257 |
| INNER |
| STATIC DECAY (5,000V~500V) |
Second |
< 0.01 |
EIA541 |
| MATERIALS |
STATIC DISSIPATIVE COATING
POLYESTER
ALUMINUMSHIELD LAYER
LLDPE
STATIC DISSIPATIVE COATING |
| TESTER |
3M MODEL 71 TEST KIT FOR STATIC COLTROL
SURFACES ETS 406C STATIC DECAY METER |
|
